There are various condensers for distilling, each with its set of advantages and drawbacks. While it’s safe to say the best choice depends on personal preference–production rate, reflux needs–you’d still have to understand how the design and placement of the still affect condensation, which can be frustrating for the novice distiller.
The best condenser for distilling is one that best meets your needs such as cooling capacity, flow rate, size, material, and price. A shotgun condenser is generally the best product condenser due to the large surface area, while a dephlegmator is generally the best reflux condenser for the same reason. Copper performs much better thermally than stainless steel but is often forgone due to the higher price tag.
In this post, I’ll share the most common condensers to help you choose one suited for your endeavors.
How Does A Condenser Work?
A condenser cools and liquefies vapor by transferring heat from a distillate to a cooling medium like water or air. Here’s a quick breakdown of how the device achieves this.
- Heat Source: The condenser receives hot vapor from a boiler containing a fermented wash.
- Condenser Coil: The vapor enters the condenser, where it passes through a coil or series of tubes.
- Cooling Medium: The water flows through a separate pipe or tube surrounding the coil, absorbs the heat, and carries it away.
The Different Types Of Condensers
Here’s a comprehensive list of different condenser designs. I’ve shared my thoughts on the pro’s and cons of each.

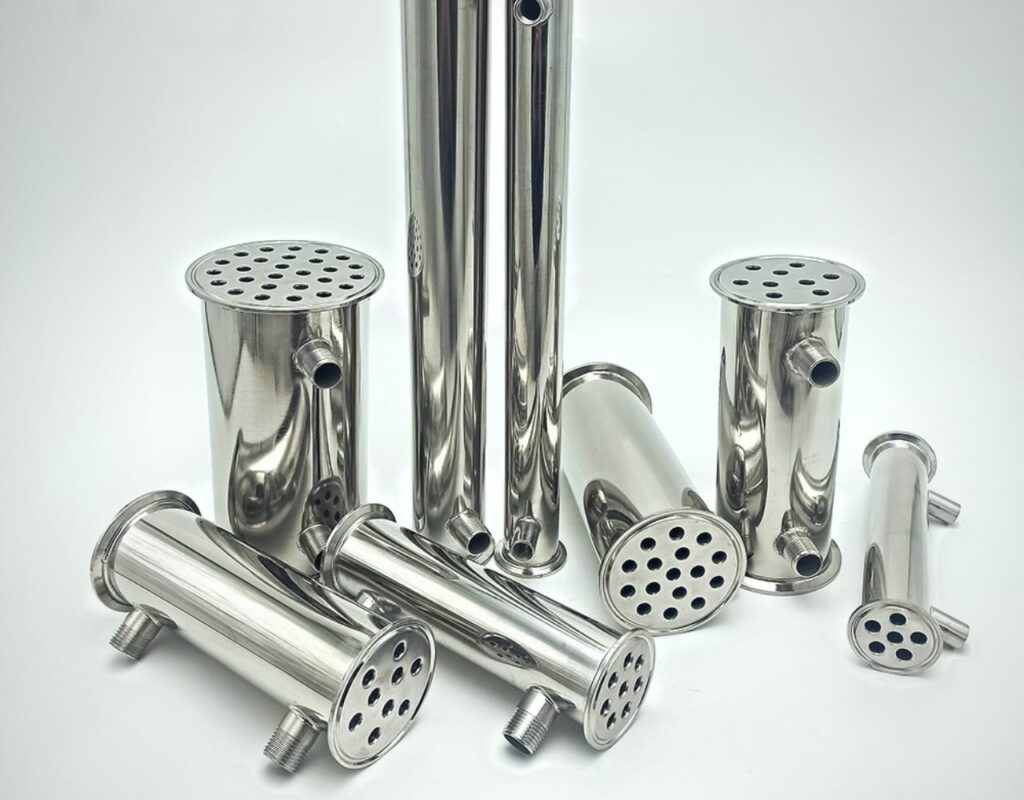

A shotgun condenser consists of multiple parallel tubes enclosed within a larger tube. The vapor passes through the inner tubes, while cool water flows through the outer tube, which facilitates heat transfer and condensation. The shotgun has a large surface area and allows for high production rates.
A Liebig is a simple design consisting of a straight tube surrounded by a water jacket. It has a smaller surface area, which can limit its cooling capacity.
The cold finger comes in a myriad of designs, but it generally consists of a chamber that acts as a cooling jacket. Water flows in and out of the chamber, resulting in condensation. It’s also a simple and compact design, making it easy to assemble and clean.
Also referred to as a reflux condenser, dephlegmators are multiple horizontal plates or coils inside the condenser tube. These attachments help increase the surface area for efficient cooling. Because it allows for continuous reflux action, it’s fantastic to produce refined spirits.
An Allihn condenser is a step up from the Liebig because it consists of a long, straight tube with multiple bulbs, increasing its surface area for better cooling efficiency. It can be more challenging to clean because of the additional bulbs.
What’s The Best Condenser Design
For product take off
Aspects like power input management and the choice of packing material within the column can influence the takeoff rate. Where a condenser is concerned, the greater the diameter, the greater the takeoff rate.
To achieve optimum take-off without clogging your condenser (and not having to spend more money to purchase connectors), we suggest the shotgun condenser. It has a larger surface area for efficient condensation. It’s our go-to if we’re seeking to achieve high take-off rates because it can handle larger volumes of vapor.
The choice of condenser plays a vital role n separating and purifying liquids.
A dephlegmator is a better option. It gives you precise control over the reflux ratio, enabling the separation of volatile compounds for a purer spirit.
Copper vs stainless steel construction
Copper condensers offer excellent thermal conductivity, aiding in efficient heat transfer and condensation. They are commonly used in traditional distillation setups but are more expensive. Stainless steel is durable, corrosion-resistant, cheaper, and easy to clean. As long as you have copper in the vapor path to remove any contaminants, you should base your choice of metal on your budget and preferences.
A longer condenser allows for more surface area, leading to better cooling and condensation. It also allows for a better flow rate, where a short one might clog because of pressure build-up.
Still design and placement
We strongly suggest you properly align and secure the connection between the condenser and the still to reduce the likelihood of flooding or potential puking. Here are some factors to take into consideration.
- Compatibility: The condenser should be appropriately sized and positioned to accommodate the output of the still, especially if you’re building your own still. Make sure there are proper fittings between the still and condenser.
- Heat Source Placement: The heat source should be positioned to allow for efficient heat transfer, ensuring effective vaporization of the wash.
- Vapor Path: A well-designed still should have a clear path for vapors to travel from the heat source to the condenser. It’s best to not excessively pack your column, which prevents pressure drops and optimizes vapor flow.
- Cooling Efficiency: Ensure there’s a generous flow of water to enhance cooling capacity and maximize product collection.
- Condenser Positioning: Place the condenser vertically to promote efficient counterflow cooling and enhance condensation. Also, locate the condenser close to the still to reduce the length of connecting tubing and reduce heat loss.
The best condenser is one with a reasonable surface area to allow for optimum flow rate and has an efficient cooling capacity. The most common condensers–Liebig, shotgun, dephlegmator—are great options. The question lies in what you’re hoping to achieve. For example, if you’re seeking a high take-off rate and refined product, the shotgun and dephlegmator are ideal because they have a large surface area that effectively condenses vapors and precise reflux capabilities to produce a clean spirit.
Frequently Asked Questions
Q1. What is the difference between the Allihn condenser and Liebig condenser?
The Allihn condenser offers higher cooling efficiency. It features multiple bulbs, providing increased surface area for cooling, while a Liebig condenser is a straight tube with a coolant tube and a small surface area.
Q2. Is a shotgun condenser or Liebig better?
A shotgun condenser is better. It allows for high production rates because of its large surface area.
Q3. Why would one use a reflux condenser?
Reflux condensers offer precise control over the reflux ratio. This ensures effective separation of volatile compounds for a more purified spirit.
Q4. Which condenser is best: aluminum or copper?
Both copper and aluminum are acceptable metals to use as condensers. Aluminum is cheaper than copper, so if you’re looking for a budget-friendly option, you can use the former.
Q5. Does the condenser size matter?
The condenser size does matter. A larger condenser offers a larger surface area for cooling, allowing for better heat transfer and condensation. This can enhance the efficiency of the distillation process. Q.
